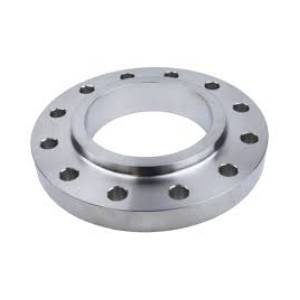

Fastech Global is the leading Stainless Steel Carbon Steel Slip On Flanges Supplier, Stockists & Supplier, dealer and Exporter in India. Fastech Global is known worldwide for its extensive high quality range of Buttwelded Pipe Fittings.
Our steel flanges contain prime quality materials. factory-made from quality steel meeting ASTM and/or AISI standards as a result of higher the standard, higher is that the toughness of the ASTM | ASME | ANSI flanges. prime quality of steel content makes an ASTM | ASME | ANSI flanges harder and will increase its hardness. Fastech Global is specialized in Stockists & Supplier and suppliers of steel flanges in India. Fastech Global Stainless may be a certified Stockists & Supplier and suppliers in India. Fastech Global Stainless is wide common in India for its prime quality steel flanges product.
Our purchaser's satisfaction depends on a variety of things like quality, Toughness, Hardness, Delivery Time and our Services for ASTM | ASME | ANSI flanges. Fastech Global may be a Indian suppliers of steel flanges in INDIA. Fastech Global is also a leading supplier and dealer of other flanges such as Stainless Steel Flanges, Alloy Flanges in INDIA. Fastech Global also is a market leader of other products such as ASTM | ASME | ANSI Flange, Stainless Steel pipe and tubes, buttweld pipe fitting, Weld Neck Flanges, Slip-On Flanges and many more other products in INDIA.
ANSI Flanges Class 150, ANSI Flanges Class 300, ANSI Flanges Class 400, ANSI Flanges Class 600, ANSI Flanges Class 900, ANSI Flanges Class 1500, ANSI Flanges Class 2500, ASTM Flanges Class 150, ASTM Flanges Class 300, ASTM Flanges Class 400, ASTM Flanges Class 600, ASTM Flanges Class 900, ASTM Flanges Class 1500, ASTM Flanges Class 2500, ASME Flanges Class 150, ASME Flanges Class 300, ASME Flanges Class 400, ASME Flanges Class 600, ASME Flanges Class 900, ASME Flanges Class 1500, ASME Flanges Class 2500,
Typical Design And Dimension
Technical Specification
| Nominal Pipe Size |
"A" (O.D.) |
"B" (Thk.) |
"C" (RF Dia.) |
"D" (B.C.D.) |
# Bolt Holes |
Dia. of Bolt Holes |
Approx. Weight |
| 1/2" | 3-3/4 | 9/16 | 1-3/8 | 2-5/8 | 4 | 5/8 | 2 |
| 3/4" | 4-5/8 | 5/8 | 1-11/16 | 3-1/4 | 4 | 3/4 | 3 |
| 1" | 4-7/8 | 11/16 | 2 | 3-1/2 | 4 | 3/4 | 4 |
| 1-1/4" | 5-1/4 | 3/4 | 2-1/2 | 3-7/8 | 4 | 3/4 | 6 |
| 1-1/2" | 6-1/8 | 13/16 | 2-7/8 | 4-1/2 | 4 | 7/8 | 7 |
| 2" | 6-1/2 | 7/8 | 3-5/8 | 5 | 8 | 3/4 | 8 |
| 2-1/2" | 7-1/2 | 1 | 4-1/8 | 5-7/8 | 8 | 7/8 | 12 |
| 3" | 8-1/4 | 1-1/8 | 5 | 6-5/8 | 8 | 7/8 | 16 |
| 3-1/2" | 9 | 1-3/16 | 5-1/2 | 7-1/4 | 8 | 7/8 | 21 |
| 4" | 10 | 1-1/4 | 6-3/16 | 7-7/8 | 8 | 7/8 | 28 |
| 5" | 11 | 1-3/8 | 7-5/16 | 9-1/4 | 8 | 7/8 | 37 |
| 6" | 12-1/2 | 1-7/16 | 8-1/2 | 10-5/8 | 12 | 7/8 | 48 |
| 8" | 15 | 1-5/8 | 10-5/8 | 13 | 12 | 1 | 79 |
| 10" | 17-1/2 | 1-7/8 | 12-3/4 | 15-1/4 | 16 | 1-1/8 | 122 |
| 12" | 20-1/2 | 2 | 15 | 17-3/4 | 16 | 1-1/4 | 183 |
| 14" | 23 | 2-1/8 | 16-1/4 | 20-1/4 | 20 | 1-1/4 | 241 |
| 16" | 25-1/2 | 2-1/4 | 18-1/2 | 22-1/2 | 20 | 1-3/8 | 315 |
| 18" | 28 | 2-3/8 | 21 | 24-3/4 | 24 | 1-3/8 | 414 |
| 20" | 30-1/2 | 2-1/2 | 23 | 27 | 24 | 1-3/8 | 515 |
| 24" | 36 | 2-3/4 | 27-1/4 | 32 | 24 | 1-5/8 | 800 |
| 1/16" raised face included in flange thickness. | |||||||
