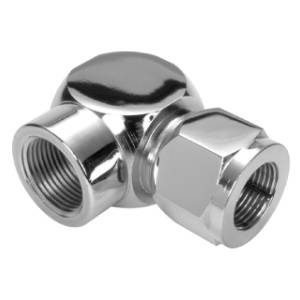

We supply and export Female Elbow Fittings which are very useful in various types of connecting functions in the big industries. Our Female Elbow fittings are of four types to be used in many different works in the varied industries. Our in-house production of Female Elbow is Stockists & Supplier with excellent quality of raw materials to suit the fixing work mainly in electrical industries, air conditioning industries. These products of ours have been well demanded and extensively used by the clients of diverse category in different size. These Female Elbow have part numbers of numerous kinds to select from.
Typical Design And Dimension
Technical Specification
| Equivalent Part no. Type 1 | Equivalent part no Type 2 | NPT FEMALE PIPE SIZE P | LX | ODT-ØT(INCHES) | Ø E | BODY HEX F | C | NUT HEX W | D | L1 |
| -100-8-1 | 1FEL1N | 1/16 | 0.56 | 1/16 | 0.05 | 9/16 | 0.60 | 9/16 | 0.50 | 0.71 |
| -100-8-2 | 1FEL2N | 1/8 | 0.66 | 1/16 | 0.05 | 9/16 | 0.60 | 9/16 | 0.50 | 0.81 |
| -200-8-2 | 2FEL2N | 1/8 | 0.75 | 1/8 | 0.09 | 9/16 | 0.60 | 7/16 | 0.50 | 0.97 |
| -200-8-4 | 2FEL4N | 1/4 | 0.88 | 1/8 | 0.09 | 11/16 | 0.60 | 7/16 | 0.50 | 1.08 |
| -300-8-2 | 3FEL2N | 1/8 | 0.75 | 3/16 | 0.12 | 9/16 | 0.63 | 9/16 | 0.54 | 1.00 |
| -400-8-2 | 4FEL2N | 1/8 | 0.75 | 1/4 | 0.19 | 9/16 | 0.70 | 9/16 | 0.60 | 1.06 |
| -400-8-4 | 4FEL4N | 1/4 | 0.88 | 1/4 | 0.19 | 7/8 | 0.70 | 9/16 | 0.60 | 1.17 |
| -400-8-6 | 4FEL6N | 3/8 | 0.88 | 1/4 | 0.19 | 7/8 | 0.70 | 9/16 | 0.60 | 1.25 |
| -400-8-8 | 4FEL8N | 1/2 | 1.12 | 1/4 | 0.19 | 1-1/16 | 0.70 | 9/16 | 0.60 | 1.36 |
| -500-8-2 | 5FEL2N | 1/8 | 0.75 | 5/16 | 0.25 | 9/16 | 0.73 | 5/8 | 0.64 | 1.13 |
| -500-8-4 | 5FEL4N | 1/4 | 0.88 | 5/16 | 0.25 | 13/16 | 0.73 | 5/8 | 0.64 | 1.20 |
| -600-8-2 | 6FEL2N | 1/8 | 0.75 | 3/8 | 0.28 | 7/8 | 0.76 | 11/16 | 0.66 | 1.20 |
| -600-8-4 | 6FEL4N | 1/4 | 0.88 | 3/8 | 0.28 | 7/8 | 0.76 | 11/16 | 0.66 | 1.23 |
| -600-8-6 | 6FEL6N | 3/8 | 0.88 | 3/8 | 0.28 | 7/8 | 0.76 | 11/16 | 0.66 | 1.31 |
| -600-8-8 | 6FEL8N | 1/2 | 1.12 | 3/8 | 0.28 | 1-1/16 | 0.76 | 11/16 | 0.66 | 1.42 |
| -810-8-4 | 8FEL4N | 1/4 | 0.88 | 1/2 | 0.41 | 13/16 | 0.86 | 7/8 | 0.90 | 1.42 |
| -810-8-6 | 8FEL6N | 3/8 | 0.88 | 1/2 | 0.41 | 13/16 | 0.86 | 7/8 | 0.90 | 1.42 |
| -810-8-8 | 8FEL8N | 1/2 | 1.12 | 1/2 | 0.41 | 1-1/16 | 0.86 | 718 | 0.90 | 1.53 |
| -1010-8-6 | 10FEL6N | 3/8 | 0.88 | 5/8 | 0.50 | 15/16 | 0.86 | 1 | 0.96 | 1.50 |
| -1010-8-8 | 10FEL8N | 1/2 | 1.12 | 5/8 | 0.50 | 1-1/16 | 0.86 | 1 | 0.96 | 1.57 |
| -1210-8-8 | 12FEL8N | 1/2 | 1.12 | 3/4 | 0.62 | 1-1/16 | 0.86 | 1-1/8 | 0.96 | 1.57 |
| -1210-8-12 | 12FEL12N | 3/4 | 1.25 | 3/4 | 0.62 | 1-3/8 | 0.86 | 1-1/8 | 0.96 | 1.76 |
| -1410-8-12 | 14FEL12N | 3/4 | 1.25 | 7/8 | 0.72 | 1-3/8 | 0000 | 1-1/4 | 1.02 | 1.76 |
| -1610-8-12 | 16FEL12N | 3/4 | 1.25 | 1 | 0.88 | 1-3/8 | 1.04 | 1-1/2 | 1.23 | 1.93 |
| -1610-8-16 | 16FEL16N | 1 | 1.50 | 1 | 0.88 | 1-11/16 | 1.04 | 1-1/2 | 1.23 | 2.11 |
Material of Construction
Monel :Grade: Monel 400, Monel K500, Monel R-405
Nickel :
Grade: Nickel 200, Nickel 201
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Inconel 800H, 800HT
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Stainless Steel :
Grade: ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Carbon Steel :
Grade: a105 a106
Duplex Steel:
Grade: ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61
Alloy Steel:
Grade : ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19
