Fastech Global is condensate pot exporter and Stockists & Supplier supplying to various countries globally. The condensate pots are made from superior quality materials and sold at competitive rates.
The prime purpose of a condensate or seal pot is to hold foreign material and any liquid resulting from vapour (condensate). This avoids the metering system from being damaged. Condensate pot has a pipe with a 4 inch diameter which is fixed horizontally between the flow meter and gauge. It is employed as a blockade between the chief line and the secondary mechanism to measure steam or any other vapours which may turn into liquid state in order to ensure compatibility with the secondary apparatus.
Being one of the leading seal pot Stockists & Supplier, we produce condensate pots in numerous materials like stainless steel, alloy steel, Monel, Hastelloy and carbon steel. Seal pots are widely employed in processing industries in addition to power plants, steel, refineries and petrochemical business. We are a renowned seal pot exporter with our suppliers based in United States of America, Dubai, Australia, Canada, Kuwait, Oman, Brazil, Lagos, Qatar, Nigeria, Saudi and several other European nations.
S31500 CONDENSATE SEAL POT, AISI 4130 CONDENSATE SEAL POT SUPPLIER, 32205 CONDENSATE SEAL POT,STAINLESS STEEL 904L CONDENSATE SEAL POT, TITANIUM 2 PORT CONDENSATE SEAL POT,STAINLESS STEEL 321 CONDENSATE SEAL POT, S32750 CONDENSATE SEAL POT, F51 UNS S31803 CONDENSATE SEAL POT, UNS N02200 CONDENSATE SEAL POTSTOCKHOLDER, STAINLESS STEEL 347H CONDENSATE SEAL POT, STAINLESS STEEL 309 CONDENSATE SEAL POT, STAINLESS STEEL 347 CONDENSATE SEAL POT, STAINLESS STEEL 321H CONDENSATE SEAL POT.

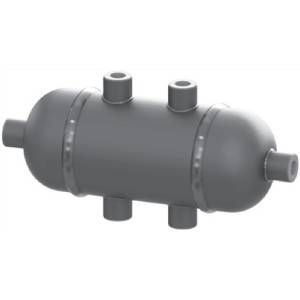

Typical Design And Dimension
Technical Specification
| Material | Shell | Cap | Pipe Schedule | Test Pressure |
| Carbon Steel | A-106 | A-105 | Sch.40 | 80 Kg / Cm2 |
| Sch.80 | 125 Kg / Cm2 | |||
| Sch.160 | 125 Kg / Cm2 | |||
| Stainless Steel | SS304 | SS304 | Sch.40 | 90 Kg / Cm2 |
| Sch.80 | 150 Kg / Cm2 | |||
| Sch.160 | NA | |||
| Stainless Steel | SS316 | SS316 | Sch.40 | 90 Kg / Cm2 |
| Sch.80 | 150 Kg / Cm2 | |||
| Sch.160 | NA | |||
| Alloy Steel | A-335 | A-182 | Sch.40 | NA |
| A-12 | F-12 | Sch.80 | 125 Kg / Cm2 | |
| Sch.160 | 210 Kg / Cm2 | |||
| Alloy Steel | A-335 | A-182 | Sch.40 | NA |
| A-12 | A-12 | Sch.80 | 125 Kg / Cm2 | |
| Sch.160 | 210 Kg / Cm2 | |||
| Special | Specify | Specify | - | - |
| Monel & Hastelloy | - | - | - | - |
Material of Construction
Monel :Grade: Monel 400, Monel K500, Monel R-405
Nickel :
Grade: Nickel 200, Nickel 201
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Inconel 800H, 800HT
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Stainless Steel :
Grade: ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Carbon Steel :
Grade: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70, SA105
Duplex Steel:
Grade: ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61
Alloy Steel:
Grade : ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19
