BALL VALVE

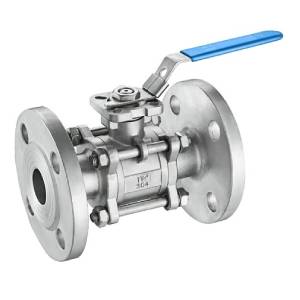

2 WAY BALL VALVE F X F (PANEL MOUNTING)

Ball valves are Stockists & Supplier by us as per BS 5351 & API6D. We are one of the few Stockists & Supplier of metal seated ball valves. Ball valves Stockists & Supplier by us in various pressure class upto class 2500. Testing standard as per BS 6755 P-I & II and API6D. Ball Valves are used in a wide variety of high pressure applications. Two factors make them popular. First, a full unrestricted flow that allows no product restrictions through the valve. Second, the three piece design and the removal of a minimal number of bolts allows service to be performed without removing the complete valve from the line.

With the help of our highly skilled professionals and using advanced production techniques, which are especially designed and developed using cutting edge technology for highly corrosive application. While manufacturing High Pressure Ball Valves supreme quality raw material in accordance with set international quality norms.

Two way ball valves Stockists & Supplier by us will be various Sizes, End connections and Pressure Ratings as per customer requirements.

New Project - 2020-10-28T154927.306

Application

  • Chemicals industry
  • Fats and fertilizer industry
  • Ship building
  • Construction industry

Key Features

  • SS 316 construction for corrossion resistance, full or reduced bore for excellent flow.3 piece design.peek/delrin seat for better performance.
  • Ball hard chrome plated for smooth operation.

Physical Features

  • Pressure rating 400 kg/cm2

Testing

  • For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
  • Working pressure : 6000 psi (431 bar)

Hydro Tests

  • Performed with pure water at 1-1/2 times of the working pressure.
  • Other tests like helium, seismic are availbale upon request.

Material of Construction

Monel :
Grade: Monel 400, Monel K500, Monel R-405
Nickel :
Grade: Nickel 200, Nickel 201
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Inconel 800H, 800HT
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Stainless Steel :
Grade: ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Carbon Steel :
Grade: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Duplex Steel:
Grade: ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61
Alloy Steel:
Grade : ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19
